82 GL-S MirrorBit

Family IS29GL_128S_01GS_00_Rev.A February 2015

Data Sheet

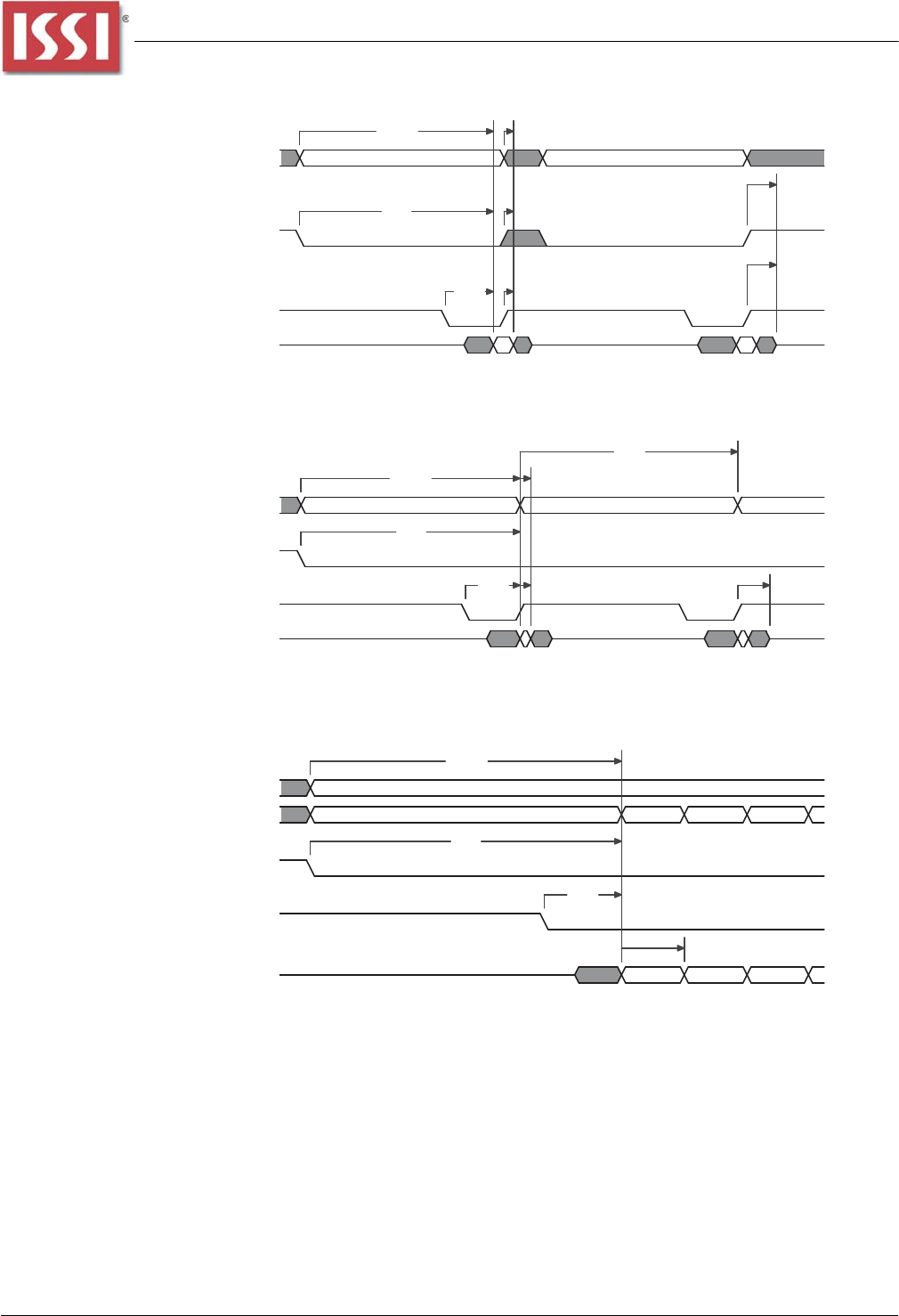

Figure 10.5 Back to Back Read (t

ACC

) Operation Timing Diagram

Figure 10.6 Back to Back Read Operation (t

)Timing Diagram

Note:

Back to Back operations, in which CE# remains Low between accesses, requires an address change to initiate the second access.

Figure 10.7 Page Read Timing Diagram

Note:

Word Configuration: Toggle A0, A1, A2, and A3.

Amax-A0

CE#

OE#

DQ15-DQ0

tACC

tOE

tCE

tDF

tOH

Amax-A0

CE#

OE#

DQ15-DQ0

tRC

tACC

tOE

tCE

tDF tOH

tOH

Amax-A4

A3-A0

CE#

OE#

DQ15-DQ0

tACC

tOE

tCE

tPACC
